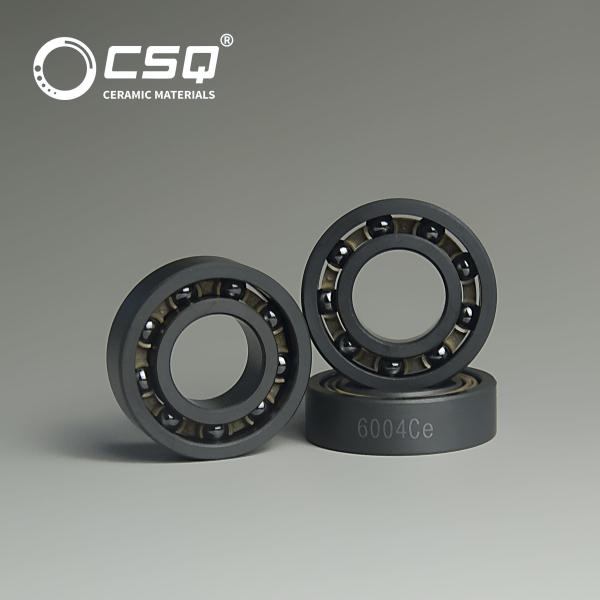

6002 6003 6005 6004 Silicon Carbide Ball Bearings 20x42x12mm

  • 1
  • 2

Brand Name : CSQ

Model Number : 6004

Place of Origin : China

MOQ : 50 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50 pcs in 30 work days

Delivery Time : 30 work days

Packaging Details : Plastik bag+carton box

Name : 6004 Ceramic Bearing

Category : Silicon carbide Ceramic Bearing

Material : Silicon carbide races and balls + PEEK cage

Designation : 6004: Ø20× Ø42×12mm

Seal structure : Open

Use : Petroleum, chemical industry

MOQ : 50 pieces

Contact Now

6004 Ceramic Bearing Of SSiC Races And Balls+PEEK Cage With High Precision

Description of 6004 SSiC Ceramic Bearing:

1. SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material, can resist corrosion by hydrofluoric acid, which is the most excellent ceramic material with the best corrosion resistance among the known materials.

2. PEEK cage: We adopted British Victrex PEEK material, PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics. The peek cages are injection molded at high temperature, so have high strength, light body.

Performance advantages of 6004 SSiC Ceramic Bearing:

►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)
