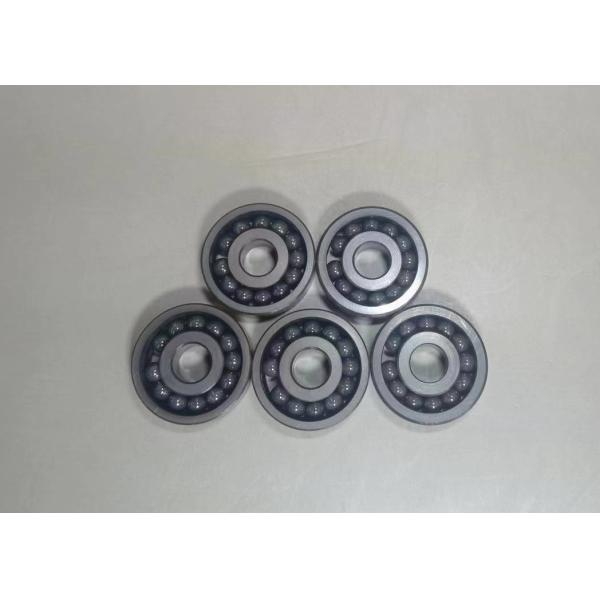

Deep Groove Miniature Ceramic Bearings 627 625 626

  • 1
  • 2

Brand Name : CSQ

Model Number : 600/620/630/680/690 series

Place of Origin : China

MOQ : 60 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : Negotiable

Packaging Details : Plastik box+carton box

Name : Miniature ceramic deep groove balls bearings

Model : 600/620/630/680/690 series

Race material : SSiC (Pressureless sintered silicon carbide)

Ball material : SSiC (Pressureless sintered silicon carbide)

Precision : P6/ABEC3 to P4/ABEC7

Clearance : C0/C3 or customized

Pacage : Plastik box+carton box

MOQ : 50 pieces

Contact Now

Miniature ceramic deep groove balls bearings of SSiC

Description of SSiC Miniature Ceramic Deep Groove Balls Bearings:

SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material. The atmospheric pressure solid phase sintering method at a high temperature of 2250°C are used to produce SSiC (Sintering SiC), so the free silicon and free carbon in the products are close to the theoretical values and can resist corrosion by hydrofluoric acid, which is the most excellent ceramic material with the best corrosion resistance among the known materials.

♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)

Why choose us:


Our company, as one of the most professional ceramic bearing manufacturer in China, can produce many kinds of ceramic bearings. Now we are mostly speciallizing in the automatic production of 608 ceramic bearings. Welcome your inquiry.

Reference data of Miniature Ceramic Deep Groove Balls Bearings:

Bearings model Form size
d (mm)		 Form size
D (mm)		 Form size
B (mm)		 Load
Cr (N)		 Load
Cor (N)		 Max.Speed
Grease (rpm)		 Max. Speed
Oil (rpm)
684CE 4 9 2.5 564 227 53000 63000
694CE 4 11 4 842 350 48000 56000
604CE 4 12 4 842 350 48000 56000
624CE 4 13 5 1145 488 40000 48000
634CE 4 16 5 1179 523 36000 43000
685CE 5 11 3 630 282 45000 53000
695CE 5 13 4 948 432 43000 50000
605CE 5 14 5 1170 507 40000 50000
625CE 5 16 5 1522 675 36000 43000
635CE 5 19 6 2056 896 32000 40000
686CE 6 13 3.5 952 442 40000 50000
696CE 6 15 5 1179 523 40000 45000
606CE 6 17 6 1991 846 38000 45000
626CE 6 19 6 2056 896 32000 40000
636CE 6 22 7 2930 1423 30000 36000
687CE 7 14 3.5 1032 513 40000 50000
697CE 7 17 5 1412 719 36000 43000
607CE 7 19 6 2056 896 36000 43000
627CE 7 22 7 2893 1379 30000 36000
637CE 7 26 9 4015 1983 28000 34000
688CE 8 16 4 1102 592 36000 43000
698CE 8 19 6 1969 917 36000 43000
608CE 8 22 7 2898 1379 34000 40000
628CE 8 24 8 2930 1423 28000 34000
638CE 8 28 9 4015 1983 28000 34000
689CE 9 17 4 1168 668 36000 43000
699CE 9 20 6 2171 1081 34000 40000
609CE 9 24 7 2953 1444 32000 38000
629CE 9 26 8 4026 1983 28000 34000
639CE 9 30 10 4100 2080 24000 30000

Deep Groove Miniature Ceramic Bearings 627 625 626
