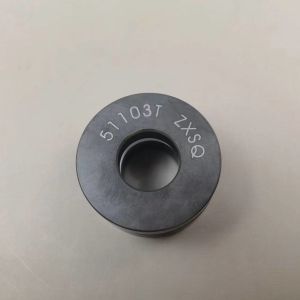

SSiC Silicon Carbide Ball Bearings Thrust Ball Bearing 51100 51200 Series

  • 1
  • 2

Brand Name : CSQ

Model Number : 51100 or 51200 series

Place of Origin : China

MOQ : 50 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50 pcs in 30 work days

Delivery Time : 30 work days

Packaging Details : Foam+cartom box

Name : SSiC Ceramic Thrust Bearings

Category : Ceramic single direction thrust ball bearing

Races and balls : SSiC (Silicon carbide)

Model : 51100 or 51200 series

Application : Machinery

Pacage : Foam+cartom box

Contact Now

SSiC Ceramic Thrust Bearings Of 51100/51200 Series

Description of SSiC Ceramic Thrust Bearing:

1. SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material and are sintered by pressureless sintering method, so the free silicon and free carbon in the products are close to the theoretical values.SSiC all ceramic bearings are preferred structure for the petroleum, chemical, semiconductor, food machinery, pharmaceutical industry, etc., and are the most widely used ceramic bearings.

2. The material of cage can be chosen among Peek, Teflon and brass. Peek and Teflon material both have excellent corrosion resistance and high temp resistance, can work for a long time in many kinds of acid and alkali enviroments.

Performance advantages of SSiC Ceramic Thrust Bearing:

►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)

SSiC Silicon Carbide Ball Bearings Thrust Ball Bearing 51100 51200 Series
